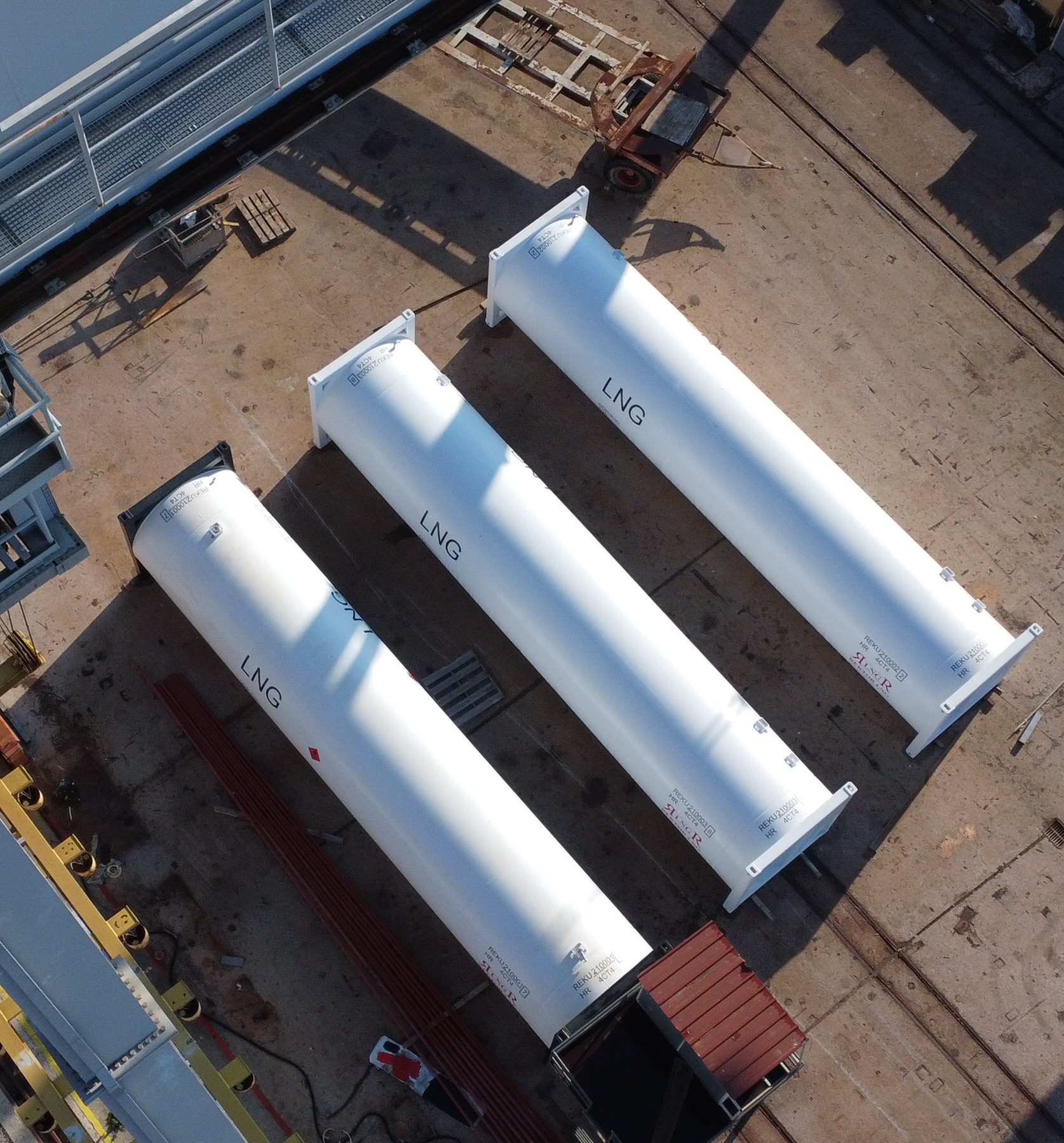

40′ GAS5 Tank Container

GAS5 40 ft ISO Container Tank

Multipurpose tank designed for the transport of 6 different gases

Replaces the need for multiple specialized tanks and simplifies fleet management

Special design, valve system and dedicated insulation for demanding cryogenic conditions

Certified in accordance with RID 2025, ASME VIII Div. 1 and EN 13530-2

Capacity, dimensions and weights

Parameter	Value	Unit / note
Tank capacity	36,49	m³
Dimensions (L x W x H)	12192 x 2438 x 2591	mm
Max. permissible gross mass	30480	kg
Empty container mass	10800	kg
Max. payload for liquid methane / LNG	14650 / 15000	kg
Max. payload for liquid oxygen	18616	kg
Max. payload for liquid nitrogen / argon	18616	kg

Cloud-based operational monitoring

CTT has developed a GPS container tracking system and a cloud-based operations center for monitoring the transport of 40' ISO cryogenic tanks worldwide.

Geolocation

Liquid phase level

Pressure in the inner vessel

Ambient temperature

Key benefits for operations

• greater flexibility in route and loading planning
• reduced need for different tank types
• gas holding time of 40 to 300 days without loss during that period

Pressure and temperature

• operating pressure: 0.6 MPa
• design pressure: 0.76 MPa
• test pressure: 0.91 MPa
• design temperature: min. -196 °C / max. 50 °C

Materials and standards

• Inner and outer vessel material: AISI 304
• design codes: RID 2025, ASME VIII Div. 1, EN 13530-2

Vessel dimensions

• Outer vessel / Inner vessel
• Diameter 2412 mm / Diameter 2112 mm
• Shell 6 mm / Shell 6 mm
• Head 8 mm / Head 8 mm
